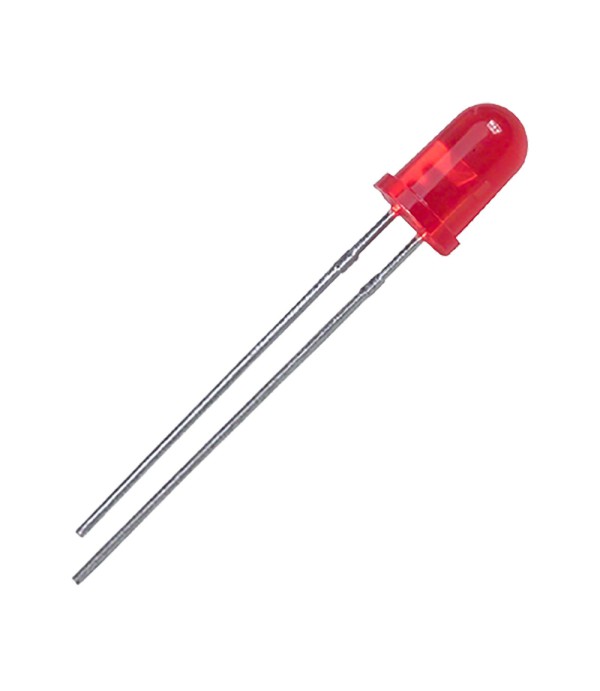

Red LED - 5mm Diffused
€0.10
- Ex Tax: €0.08
- Brand: Brandless
- Product Code: LED-R5D
- Availability: In Stock
The well-known LED. These LEDs are perfect for prototyping but can just as easily be used in finished products.
Note: Always use a LED series resistor. You can calculate the required resistor value using the following tool: LED-Resistor Calculator.
| General | |
| Brand | Brandless |
| Minimum operating temperature [°C] | -25 |
| Maximum operating temperature [°C] | 85 |
| General Physical Appearance | |
| Dimension X [mm] | 5 |
| Dimension Y [mm] | 5 |
| Dimension Z [mm] | 9 |
| Experiment PCB friendly | Yes |
| Form factor | Individual component |
| Main color | Red |
| Mounting options | THT (Through Hole Pin) |
| Weight [g] | 1 |
| Diode | |
| Forward voltage [V DC] | 2.2 (±0.2) |
| Maximum continuous forward current [mA] | 30 |
| Maximum leakage current [μA] | 30 |
| Maximum reverse voltage [V DC] | 5 |
| Type | LED |
| LED | |
| Beam angle [°] | 30 |
| LED color | Red |
| Lens | Diffused |
| Wavelength [nm] | 630 (±2) |
| Connectors | |
| Connector/pin width [mm] | 0.5 |
| Pin distance [mm] | 2.54 |
| Pin length (PCB/short side) [mm] | 17 |
| Power supply connector(s) | Solder pin(s) (THT) |
| Package Contents | |
| Package contents | 1x LED |
