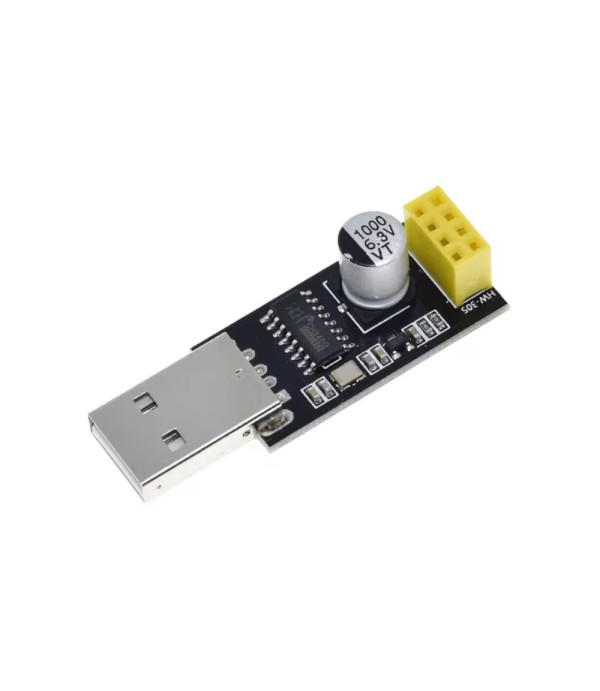

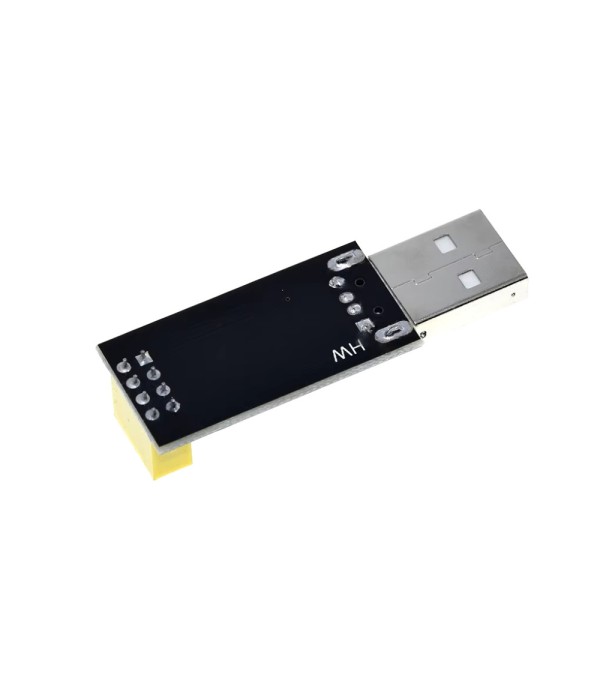

ESP-01(S) Programmer - USB to TTL Serial UART Converter - CH340G
€4.00
- Ex Tax: €3.31
- Brand: Brandless
- Product Code: PROG-ESP01S
- Availability: In Stock

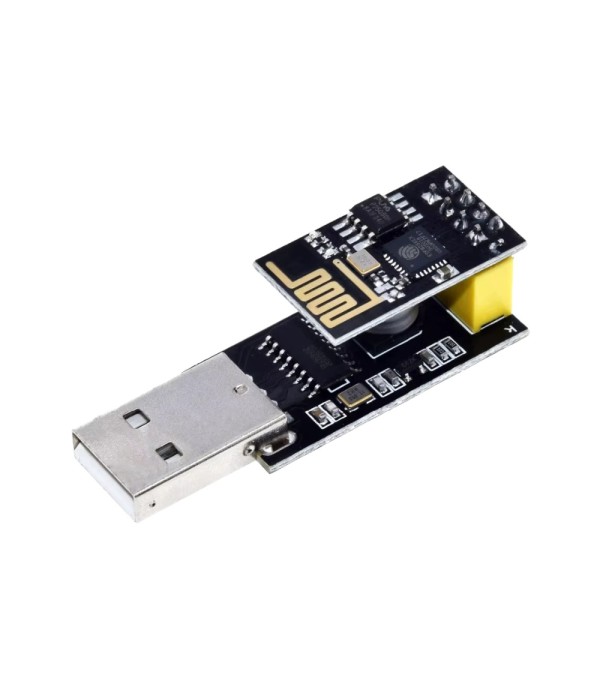

This ESP-01(S) programmer can be used to program, debug and update both the ESP-01 and ESP-01S modules. After plugging the ESP-01(S) module into the programmer, you can use the module in the Arduino IDE, ESP8266Flasher and Espressif Flash Download Tools. Using the USB connector, you can easily connect the adapter to a computer.
Note: No ESP-01(S) module is included.
| General | |
| Brand | Brandless |
| General Physical Appearance | |

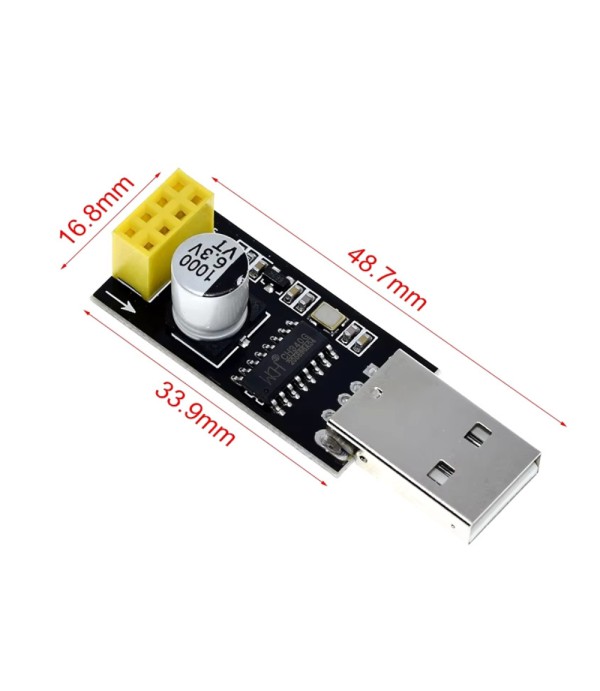

| Dimension X [mm] | 33.9 |
| Dimension Y [mm] | 16.8 |
| Dimension Z [mm] | 12.3 |
| Form factor | Module (general) USB stick |
| Main color | Black |
| Weight [g] | 6 |
| General Electrical Properties | |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Minimum supply voltage [V DC] | 5 |
| Communication | |
| Hardware interface(s) | UART (RS232) USB CDC |
| USB to serial converter | CH340G |
| Connectors | |
| IO-connector(s) | Pin header female (2.54mm) USB-A male |
| Power supply connector(s) | USB-A male |
| Package Contents | |
| Package contents | 1x ESP-01(S) Programmer |
