3-Channel Servo Tester - Servo Driver - 3 Modes
€2.75
- Ex Tax: €2.27
- Brand: Brandless
- Product Code: SERVOTESTER
- Availability: In Stock

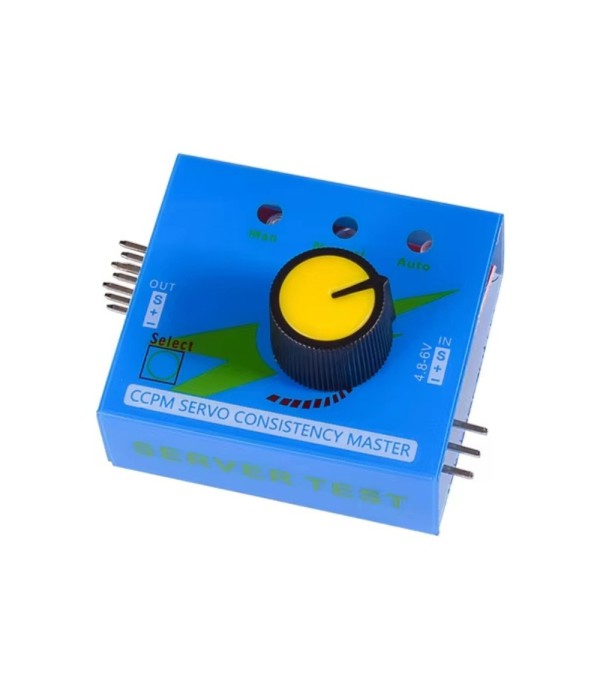

A servo tester that allows you to control up to 3 servomotors simultaneously. The servo tester comes with 3 different modes. The functionality of the modes may differ depending on what type of servo is connected:
Limited rotational range (often 180°) servo
- Manual: Use the dial to control the position of the servo.
- Neutral: Servo returns to neutral position.
- Sweep: Servo moves automatically over the full range.
Continuous (360°) servo
- Manual: Use the dial to control the speed of the servo.
- Neutral: Servo will rotate at the default speed.
- Sweep: Servo moves automatically at all possible speeds.
It's also possible to connect ESCs (Electronic Speed Controllers) to this servo tester. Turning the dial will change the speed of the DC motor.
The pinout is labelled on the servo tester.
| General | |
| Brand | Brandless |
| Features | Motor driver |
| General Physical Appearance | |

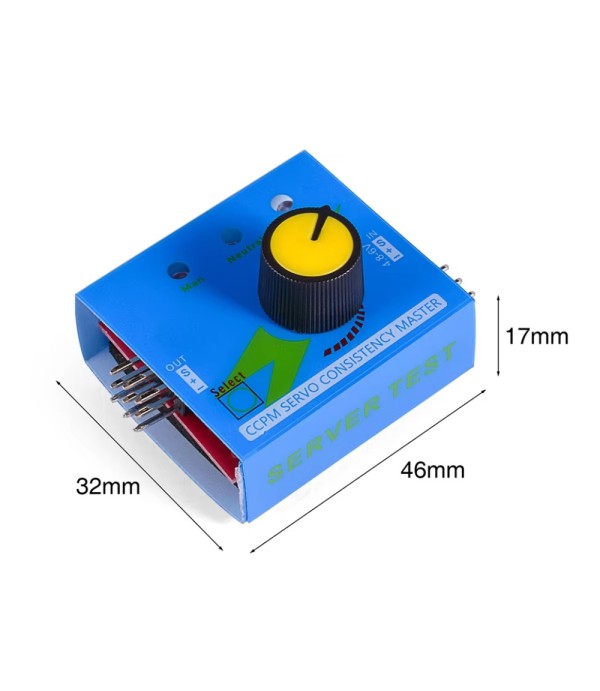

| Dimension X [mm] | 46 |
| Dimension Y [mm] | 32 |
| Dimension Z [mm] | 17 |
| Main color | Blue |
| Weight [g] | 5 |
| General Electrical Properties | |
| Maximum supply voltage [V DC] | 6 |
| Minimum supply voltage [V DC] | 4.2 |
| Communication | |
| Hardware interface(s) | PWM |
| Motor Driver | |
| Maximum (RMS) current channels combined [A] | 0.015 |
| Maximum motor supply voltage [V DC] | 6 |
| Minimum motor supply voltage [V DC] | 4.2 |
| Number of servo motor channels | 3 |
| Supported motor type(s) | Servomotor (PWM) |
| Type | Tester |
| Connectors | |
| IO-connector(s) | Pin header male (2.54mm) |
| Motor connector(s) | Pin header male (2.54mm) |
| Power supply connector(s) | Pin header male (2.54mm) |
| Package Contents | |
| Package contents | 1x Servo tester |
